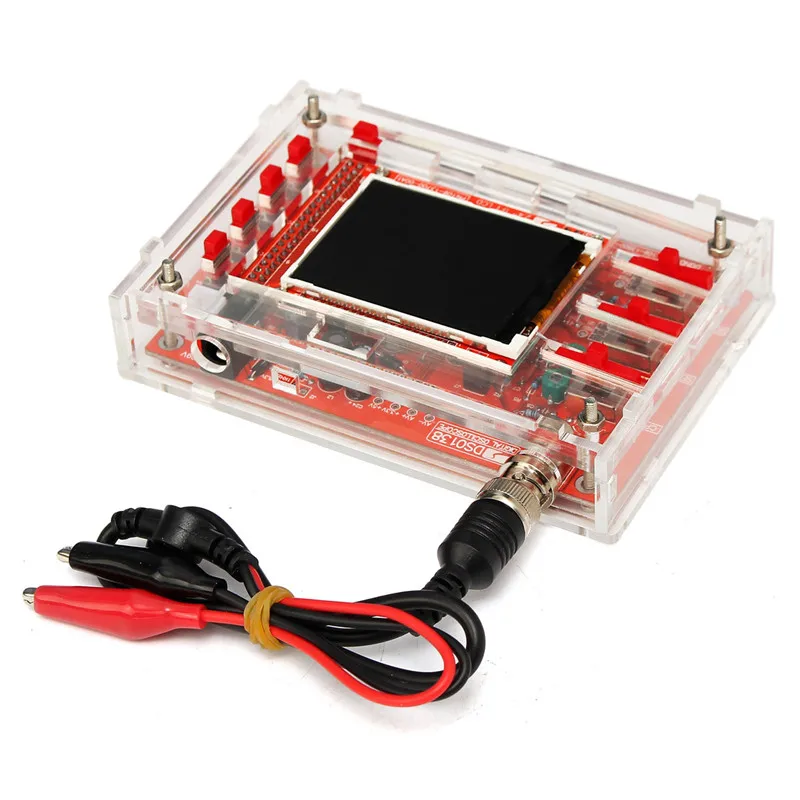

DSO138 Oscilloscope DIY Kits +Acrylic Shell

Model: DSO138
Case Material: Acrylic
Supply Voltage: DC 9V
Accuracy: 12Bit
Input Impedance: 1MΩ
Analog Bandwidth: 0-200KHz
Coupling Modes: DC/AC/GND
Sampling Buffer Depth: 1024 bytes
Maximum Real-time Sampling Rate: 1Msps
Vertical Sensitivity: 10mV/Div - 5V/Div (1-2-5 progressive manner)
Maximum Input Voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Horizontal Time Base Range: 10μs/Div - 50s/Div (1-2-5 progressive manner)
Screen Size(L*W): 52 x 40 mm
PCB Size(L*W*H): 115 x 75 x 20 mm
Case Size(L*W*H): 126 x 86 x 28 mm

Features:
1.TFT controller recognition function.
2.Available rising or falling edge trigger.
3.Comes 1Hz /3.3V square wave test signal source.
4.Adjustable vertical displacement, and with instructions.
5.Observable previous trigger waveform (negative delay).
6.Can freeze at any time waveform display (HOLD function).
7.The SMD has been soldered, more suitable for electronic beginner.
8.Waveform storage function: will not lose the waveform after power off.
9.With automatic, regular and one-shot modes, easy to capture the moment waveform.
10.Short-circuit and open-circuit detection: can help the user find out the soldering error.
11.With waveform parameter digital display, including frequency, period, pulse width, ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
12.Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
13.This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen,
can be used as ARM test development board.

Package Included:
1 x DSO138 DIY Digital Oscilloscope Kit
1 x DIY Cover for DSO138
1 x Probe
3 x User Manual

Note:
Manual measuring, please allow 1 ~ 3 cm error,thank you.
